KD-M200

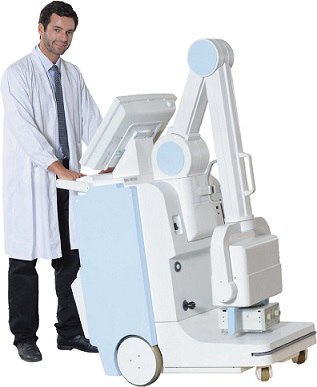

The KD-M200 is a battery powered mobile x-ray unit which suits a wide range of clinical applications developed by Kangda Intercontinental research and development teams at domestic and abroad, with a compact and flexible body, and excellent image chain , simple and convenient operation.

1. Comprehensive protection:

High-performance beamers tailored for the shooting environment in the ward, the amount of radiation beyond 3m can be ignored, providing effective protection for the surrounding patients and their families. The remote control radius of 10m radio exposure remote control, so that the operator technician away from radiation damage, even if standing outside the door, without pointing at the machine can easily complete the shooting.

2. Convenient way to do this:

The tube can hover anywhere within 180 degrees of the front of the device. Suitable for any size of ward. Computer-controlled, color LCD touch screen with APR organ program photography

3.Humanized design：

The large rear wheels make the device easier to move, and the pull-down Handbrake design is more convenient and more secure.

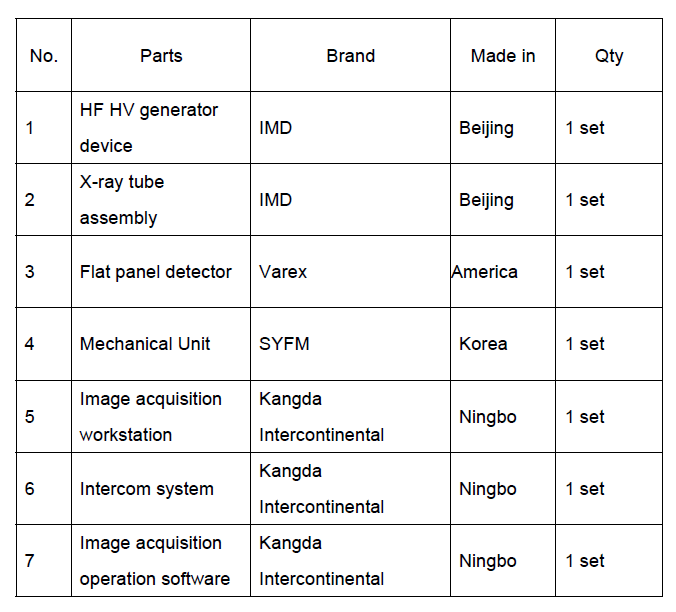

Configuration list

Specification

X-Ray Generator

1. Max power 30KW
2. Max voltage 125KV
3. Max 200mAs
4. Max current 425mA
5. Monobloc thermal capacity 375kJ
6. Exposure Time: 1.2ms-1s
7. Frequency 100 kHz
8. Fipple<3%

X-Ray Tube

1. Dual Focus Anode
2. Target Material：Tungsten (W)
2. Focal spot 0.6-1.3mm
3. Rotating Anode: 3000RMP
3. Angle 16°
4. kV selection continuously from 40 to 125kV
5. mAs selection values from 0.5 to 200mAs

Collimator

1. with multiple layer blades and manual control variable field from 0×0 to 36×43cm to a 100cm FFD high intensity halogen lamp 160lu×at 100cm ON/OFF timer of lamp at 30s
2. Extractible measurement tape to control FFD
3. Collimator rotation ±90°

Mechanical Unit

1. Arm rotation ±90°
2. swiveling front wheels in anti-static rubber big rear wheels
3. dead-man brake system
4. Variable focus-floor distance 48-200cm
5. Rotation of monobloc supporting fork -40°/+105°
6. Rotation of monobloc in fork -160°/+160°
7. Dimensions during transportation 1078x573x1574mm
8. Weight 295kg
9. Exposure Control: Radio exposure Remote Switch

Detector (4336W)

1. Overview 14″×17″（360mm×430mm）
2. A/D Conversion: 14bits
3. Pixel Matrix: 3072 x 2560
4. Semi-conductor material: a-Si /Csi
5. Pixel size 139 μm

Workstation

1. Monitor:19”
2. Hardware：
CPU: more than Pentium4
HDD: more than 320 GB
RAM : more than 2GB
3. Software：
Operating system：Windows XP Professional
Acquisition and control System
Register
Emergency
Exam
Database
Patient data-base management system
Correction of H.V. Generator
X-ray Generator Control: kV, mA, ms, mAs adjustment
Automatic Image Optimization
Windows technology
Measurement Information Marking
Imaging Proview、Display、After treatment
DICOM 3.0 Standard
Support DICOM print

Power Supply

1. Standard voltage 220V±10%,50±1Hz 16A max
2. Input power 3kVA
3. power resistanc
